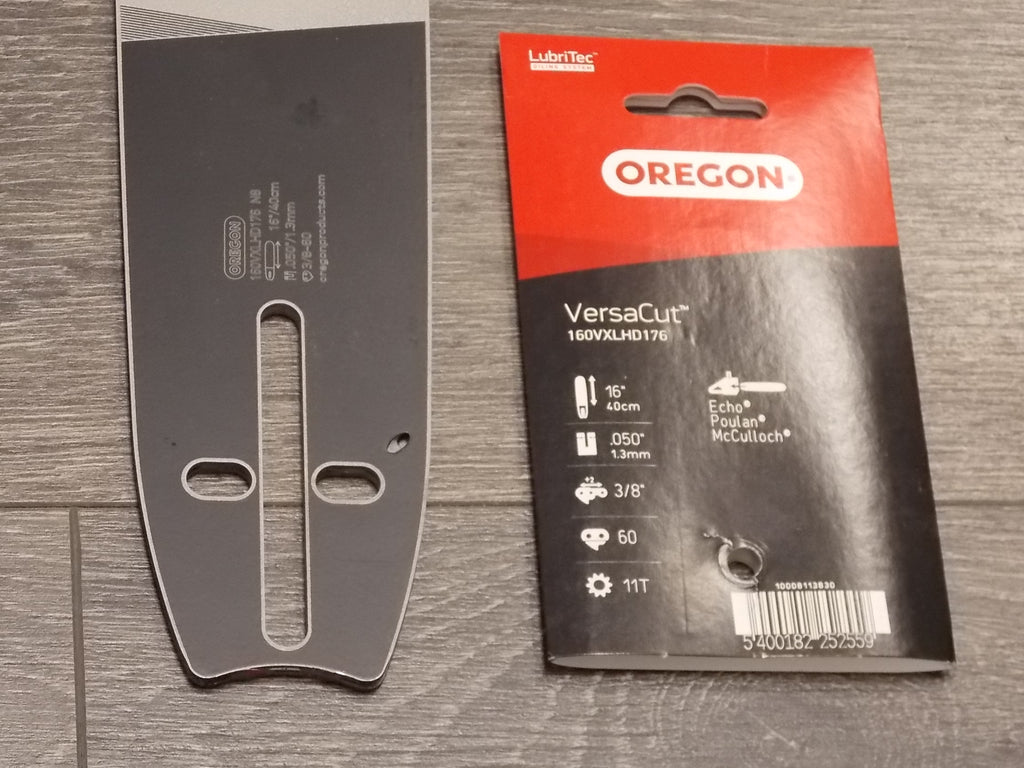

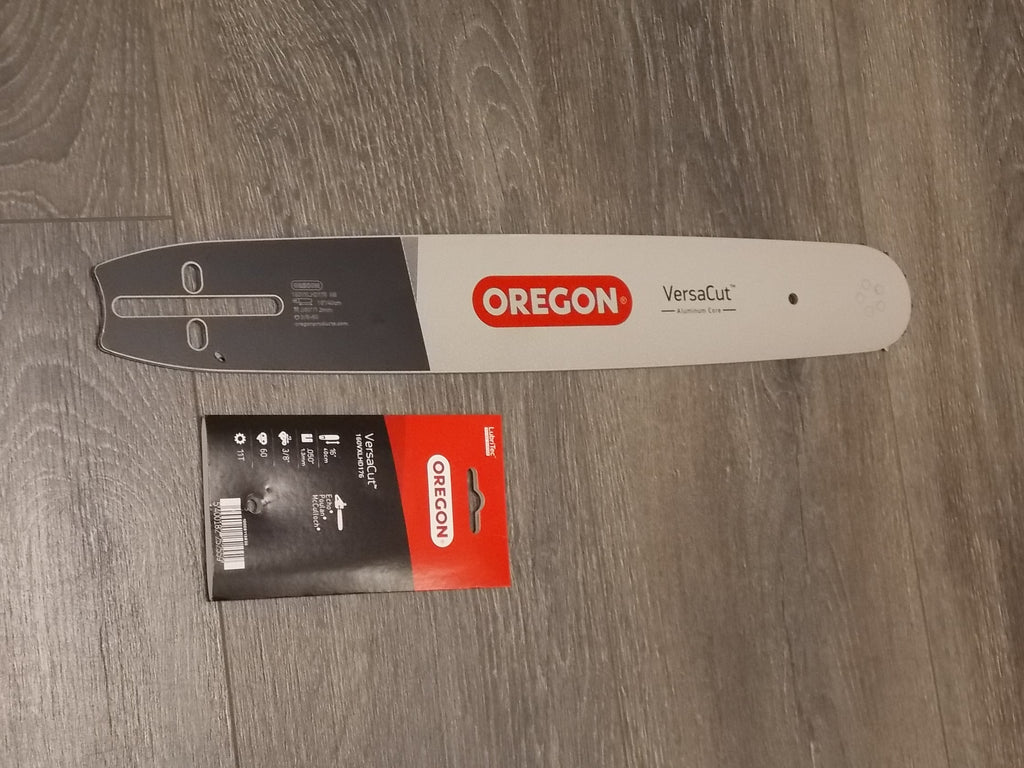

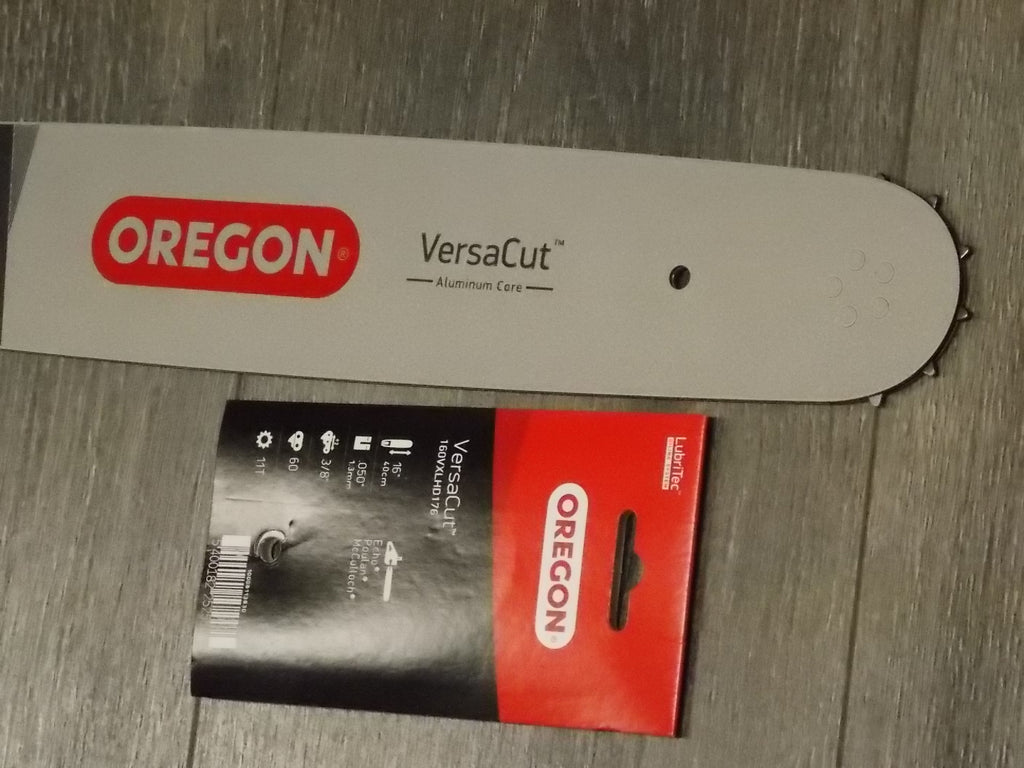

160VXLHD176 Oregon 16-inch chainsaw bar 3/8 pitch .050 gauge 60 DL

Built for professional forestry work, the Oregon VersaCut 160VXLHD176 is a 16-inch light-weight guide bar featuring 3/8 pitch, .050 gauge, and 60 drive links. Its rigid construction minimizes deflection for cleaner, more accurate cuts, while the lightweight profile reduces operator fatigue during extended use. The advanced sprocket nose system extends component longevity and decreases maintenance intervals. Enhanced chain tracking geometry reduces rail wear and improves overall cutting consistency. Integrated kickback reduction technology provides superior safety and control, making this bar particularly effective on mid-range saws where balance and precision are critical to performance.

Compatible Replacement 16D0AS3860C Echo Bar
Supersedes 160GLHD176, 160SLHD176 Oregon
Specs 3/8 pitch .050 gauge and 60 drive links.

Fits 3/8 pitch model saw

• Echo: CS-452, CS-500EVL, CS-510(old models with orange color), CS-510EVL, CS-550 (.375" Pitch), CS-5500, CS-590 Timberwolf, CS-60, CS-60S, CS-600, CS-600P, CS-601, CS-602, CS-610, CS-610T, CS-620P, CS-650, CS-660, CS-670, CS-6700, CS-680, CS-701, CS-702, CS-706, CS-750, CS-8000, QV-670, QV-8000, CS-800P CS-451, CS-452, CS-500 (.375" Pitch), CS-501, CS-501EVL,
• Allis Chalmers: 195, 295, 95
• Dayton: 2Z462, 2Z462A, 2Z463, 2Z561, 2Z971, 4Z251, 4Z251A, 4Z252, 4Z397, 6Z826, 7Z627
• Fairmount Hydraulic: H6200B
• Green Machine: 7600, 7700
• JohnDeere: 055SV, 50AV, 50V, 51SV, 55V, 60V, 65, 65SV, 66SV, 70V, 800V, 80EV
• Lombard: AP-42, Comago, CS-3500, CS-3501, CS-3502, CS-3503, Lightning III, Super Lightning
• McCulloch: 1000, 10-10, 10-10A, 2-10, 3-10, 4-10, 5-10, 6-10, 7-10, 3420, 3720, 55, 555, 560, 57, 570, 5700, 60, 605, 610, 620, 650, 655, 700, 80, 800, 805, 8200, 850, CP55, CP70, CP70L, Double Eagle 50, Double Eagle 80, Eager Beaver 3.7, PM605, Pro Mac 55, Silver Eagle 3420, SP-60, SP-70, SP-80, SP-81, Timber Bear, Titan 50, Titan 57, Titan 70
• Montgomery Ward: TMY13083, TMY24084, TMY24086, TMY24088
• Poulan/PoulanPRO: 203, 245, 3400, 360, 361, 3700, 375, 3800, 3900, 395, 400, 4000, 4200, 4400, 450, 4900, 5200, 5400, 5500, 6700
• RedMax: G561AVS (3/8 Pitch), G621AVS
• Sears/Craftsman: 35145, 35212, 35483, 35608, 35609, 35690, 35721, 35727, 35728, 35826, 35829, 35851, 35881, 35885, 35887, 35889, Electric (after 1983)
• Skil: 1641
• Tanaka: ECS-505, ECS-506, ECS-650, ECS-655
• Western Auto: 3400, 430, B013
• Bar weight only 2.03 pounds.
• THIS BAR and Chain combo FITS THE Above SAWS WITH A 3/8 PITCH SPROCKET.
• This 16-inch guide bar is 3/8 pitch .050 gauge (1.3mm) 60 drive link
• NOTE- .325 and .404 pitch sprockets or chain must be changed to 3/8 pitch to use this bar.
• Chain choices for this bar -click the hyperlink below to view and purchase the chain
• 72EXJ060_Full Chisel Full Skip PowerCut
• 72EXL060_Full Chisel PowerCut
• 72LPX060_Full chisel super 70
• 72CL060_Square ground Full chisel
• 72CK060_Square ground full chisel Half skip
• 72CJ060_Square ground Full chisel Full skip
• 72RD060_RipCut Ripping Chain
